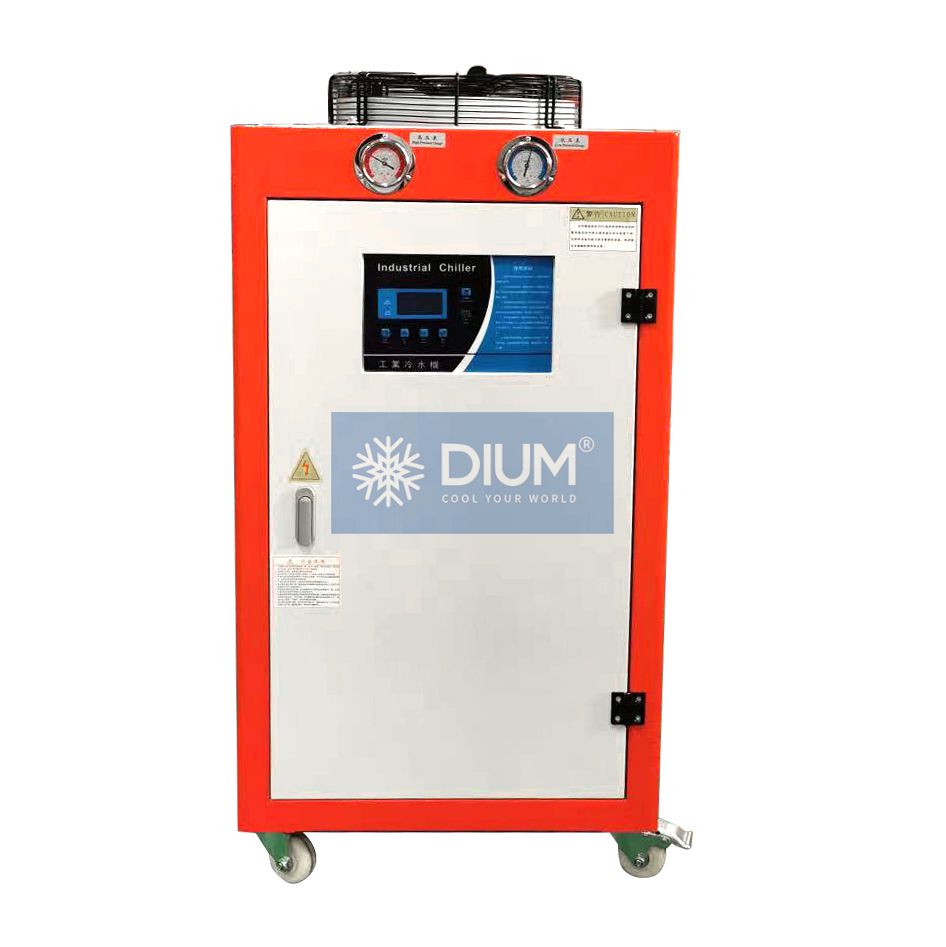

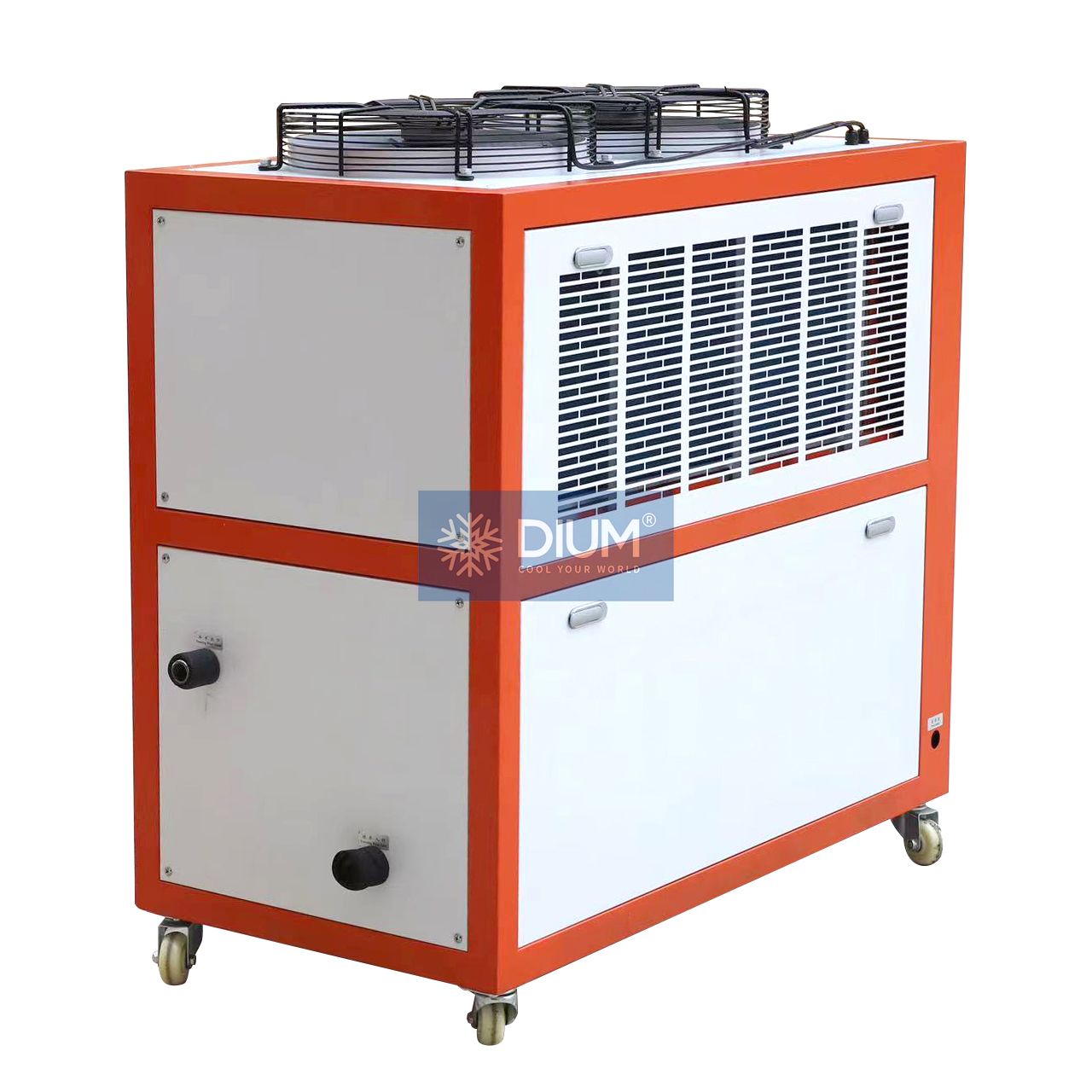

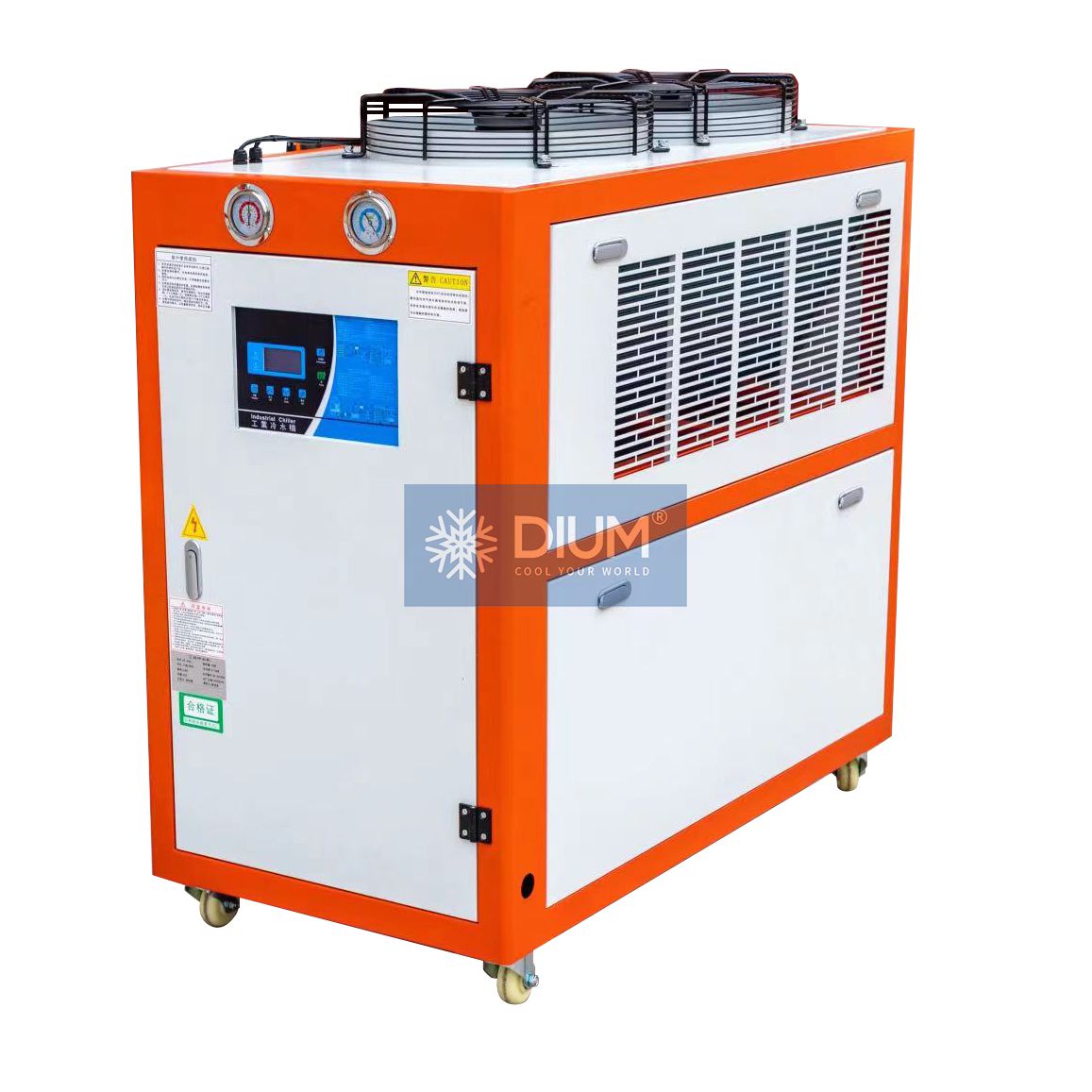

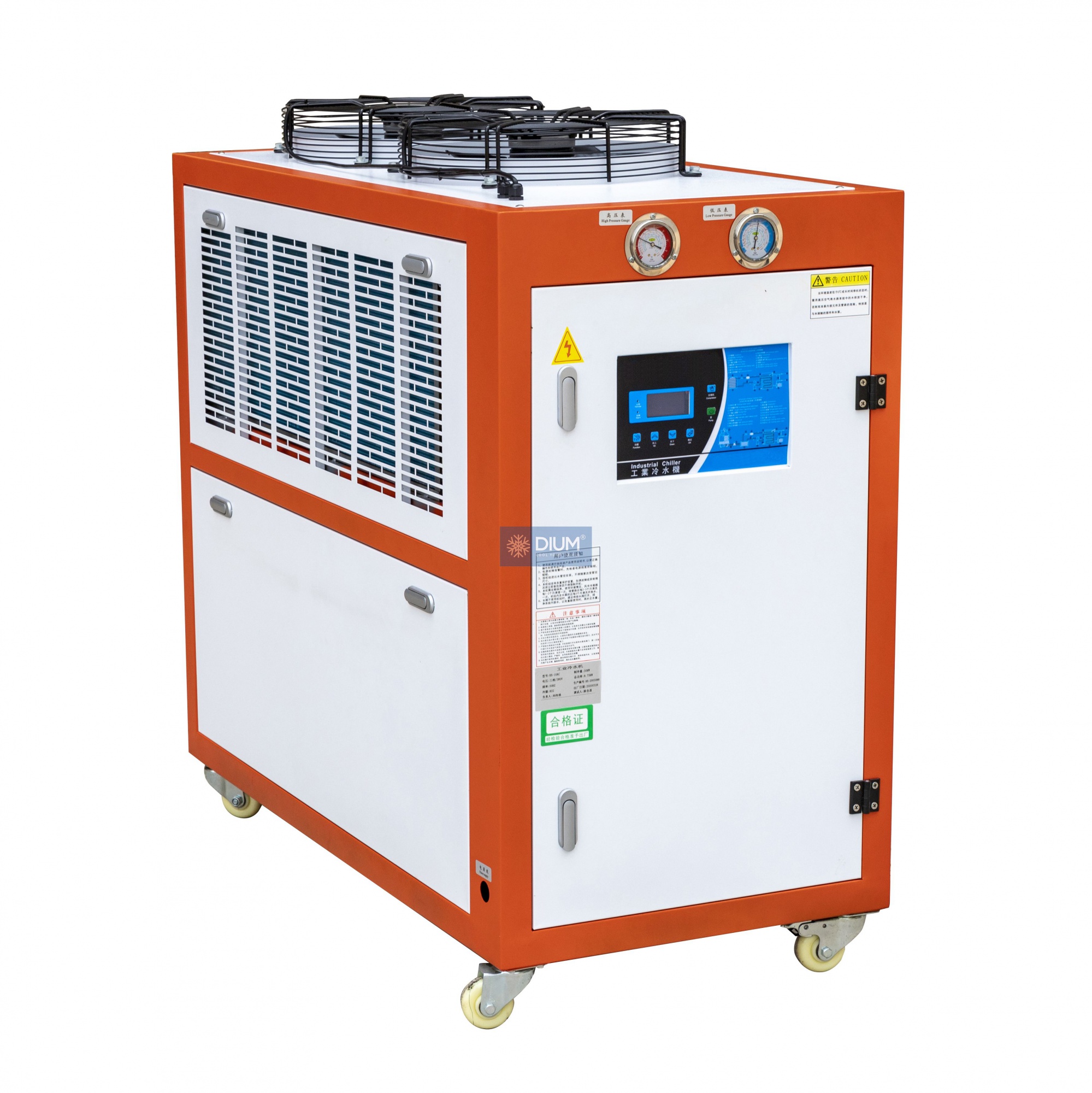

Air-cooled Chiller

Air-cooled Chiller, also known as air cooler type industrial chiller, is a kind of equipment for a variety of different process industries, the equipment is cooled through the form of cooling to achieve the purpose of the process.

Air-cooled chiller

◎ Using air to dissipate heat, no need to install a cooling water tower

◎ Low noise fan motor High efficiency condenser

◎ Stable operation, power saving and durable

◎ Current protection, pressure protection, overtemperature protection, water flow protection, fault prompt and other multiple protections

◎ Working cooling temperature adjustable from 5-35 degrees

◎ Four-corner pulley device, easy to move

Parameters

Air-cooled chiller

◎ Using air to dissipate heat, no need to install a cooling water tower

◎ Low noise fan motor High efficiency condenser

◎ Stable operation, power saving and durable

◎ Current protection, pressure protection, overtemperature protection, water flow protection, fault prompt and other multiple protections

◎ Working cooling temperature adjustable from 5-35 degrees

◎ Four-corner pulley device, easy to move

Air-cooled chiller Part1/2
Item	Mode	Hytau®AC-01	Hytau®AC-02	Hytau®AC-03	Hytau®AC-05	Hytau®AC-06	Hytau®AC-08	Hytau®AC-10	Hytau®AC-12
Nominal Cooling	Kcal/h50HZ	2580	5160	7740	12900	15480	20640	25800	30960
Capacity	KW /50HZ	3.0	6.0	9.0	15	18	24	30	36
Total input powe	KW	1.25	2	2.88	4.48	5.23	7.25	8.75	10.25
Power Supply voltage		1PH/220V/50HZ		3PH/380V/50HZ
Refrigerant	Type	R22(R407C/R404A/R410A/R134A)
Refrigerant	Control mode	Capillary
Compressor	Type	Rotor type		Hermetic scroll type (Piston)
Compressor	Power(KW)	0.75	1.5	2.25	3.75	4.5	6	7.5	9
Fan	Power(KW)	0.13	0.13	0.13*2	0.18*2	0.18*2	0.25*2	0.25*2	0.25*2
Fan	Blast volumn (m³/h）	2450	2450	4940	7840	7840	10830	10830	10830
Condenser	Type	High efficient finned copper tube+low noise outer rotoy fan
Condenser	Cooling volume (m/h)	1000	2000	3000	5000	6000	8000	10000	12000
Evaporator	Type	Water tank with coil (Shell and Tube)
	Frozen fluid flow (m/h)	0.55	1.2	1.5	2.5	3.2	4.1	5.2	6.0
	Tank volume(L)	35	35	60	60	60	140	140	140
	Inlet/ outlet pipecaliber	1”	1”	1”	1”	1.5”	1.5”	1.5”	2”
Water	Power(KW)	0.37	0.37	0.37	0.37	0.75	0.75	0.75	1.5
	P u m p head(m)	19	19	19	19	19	19	19	19
	Wate rflow(m³/h)	6	6	6	6	9	9	9	12
Safety protection	Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection
Dimension	L(mm)	910	910	1190	1310	1310	1610	1610	1610
	W(mm)	55	550	530	630	635	735	735	735
	H (mm)	85	850	1230	1230	1230	1390	1390	1390
Weight	Kg	82.5	90.5	147	174.5	180	281.5	303.5	326
Note: 1. The refrigerating capacity is based on: the inlet and outlet temperature of chilled water is 12 ℃ / 7 ℃ , and the inlet and outlet temperature of cooling water is 30 ℃ / 35℃ ; 2. Working range: the temperature range of chilled water: 3 ℃ to 35 ℃ ; the temperature difference between the inlet and outlet of chilled water: 3 ℃ to 8 ℃ . It is used in theenvironment where the condensation temperature is not higher than 35 ℃ . Reserves the right to change the above parameters or dimensions without notice.

Air-cooled chiller part2/2
Item	Mode	Hytau®AC-15	Hytau®AC-20	Hytau®AC-25	Hytau®AC-30	Hytau®AC-40	Hytau®AC-50	Hytau®AC-60
Nominal Cooling	Kcal/h50HZ	38700	51600	64500	77400	103200	129000	154800
Capacity	KW /50HZ	45	60	75	90	120	150	180
Total input powe	KW	13.95	18.06	22.55	27.04	37.12	44.7	53.68
Power Supply voltage		3PH/380V/50HZ
Refrigerant	Type	R22(R407C/R404A/R410A/R134A)
Refrigerant	Control mode	Capillary	Expansion valve
Compressor	Type	Hermetic scroll type (Piston)
Compressor	Power(KW)	11.25	15	18.75	22.5	30	37.5	45
Fan	Power(KW)	0.6*2	0.78*2	0.8*2	0.78*3	0.78*4	0.8*4	0.78*6
Fan	Blast volumn (m³/h）	17840	22000	24840	33000	44000	49680	66000
Condenser	Type	High efficient finned copper tube+low noise outer rotoy fan
Condenser	Cooling volume (m/h)	15000	20000	25000	30000	40000	50000	60000
Evaporator	Type	Water tank with coil (Shell and Tube)
	Frozen fluid flow (m/h)	7.5	10	12.4	15.1	20.5	25.2	30.3
	Tank volume(L)	200	220	220	315	420	500	550
	Inlet/ outlet pipecaliber	2”	2”	2.5”	2.5”	3”	4”	4”
Water	Power(KW)	1.5	1.5	2.2	2.2	4.0	4.0	4.0
	P u m p head(m)	19	19	20	20	20	20	20
	Wate rflow(m³/h)	12	18	25	25	45	45	45
Safety protection	Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection
Dimension	L(mm)	1760	1910	2360	2660	1910	2360	2040
	W(mm)	850	850	850	920	1700	1900	2000
	H (mm)	1490	1740	1900	1890	1650	1800	1850
Weight	Kg	418	485	579.5	815.5	970	1050	1300
Note: 1. The refrigerating capacity is based on: the inlet and outlet temperature of chilled water is 12 ℃ / 7 ℃ , and the inlet and outlet temperature of cooling water is 30 ℃ / 35℃ ; 2. Working range: the temperature range of chilled water: 3 ℃ to 35 ℃ ; the temperature difference between the inlet and outlet of chilled water: 3 ℃ to 8 ℃ . It is used in theenvironment where the condensation temperature is not higher than 35 ℃ . Reserves the right to change the above parameters or dimensions without notice.

1. Condenser	2. Cooling fan	3. Angle valve
4. Drying filter	5. Expansion valve	6. Automatic water makeup nozzle
7. Drain valve	8. High pressure Switch	9. Low pressure switch
10. Compressor	11. Evaporator	12. Bypass valve (regulating valve)
13. Pump	14. Cooling water return	15. Cooling water outlet

As shown in the figure above , the refrigerant liquid with low temperature and low pressure flows in the evaporator tube and contacts with water outside ,forming refrigerant , which indirectly absorbs the heat of water, makes the water temperature drop, and the refrigerant absorbs the heat of water, which makes the refrigerant gasified and changes from liquid to gas. Through the suction of the compressor , the refrigerant is sucked into the compressor and compressed into the high temperature and high pressure gas system The refrigerant is discharged. After passing through the condenser, due to the function of the fan, the air rapidly cools the refrigerant in the condenser tube . The refrigerant changes from a gaseous state to a liquid state , into a liquid with high temperature and high pressure . After passing through the throttling device, the refrigerant turns into a low-pressure and low-temperature liquid refrigerant and enters the evaporator for a cycle . Through a series of cycle refrigeration , the circulating water pump directly transports the cooling water to the using equipment and returns to the evaporator water tank after cooling down, so as to cycle repeatedly.

◎ Tips：The type and model of the machine are different, so the selection and appearance of accessories are also slightly different

Multiple protections-alert
1.Temperature abnormalities	2.The power phase inversion	3.High- and low-pressure failure	4.Overload of compressor
5.Overheat of compressor	6.The pump is overloaded	7.Low water level alarm	8.Short circuit
9.Overload of current	10.Protection against freezing	11.Exhaust pressure protection	12.Excellent water flow protection
