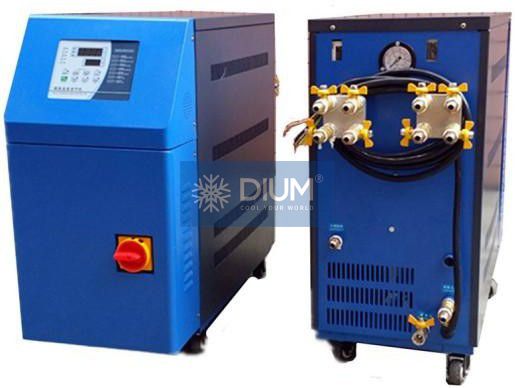

Water Temperature Control Units-High

High-Temperature Water Temperature Control Units (WTCUs) are specialized systems designed to maintain and regulate water temperatures that often exceed standard control limits, typically above 100°C (212°F).

High-Temperature Water Temperature Control Units (WTCUs)

◎ heat transfer medium "water",

◎ Stable operation

◎ Fast temperature ramp-up speed, accurate and stable temperature

◎ Energy saving

◎ Microcomputer controller

◎ Multiple security protection

◎ Fault indication

◎ Temperature control 30-180°C

Parameters

High-Temperature Water Temperature Control Units (WTCUs)

◎ heat transfer medium "water",

◎ Stable operation

◎ Fast temperature ramp-up speed, accurate and stable temperature

◎ Energy saving

◎ Microcomputer controller

◎ Multiple security protection

◎ Fault indication

◎ Temperature control 30-180°C

Mode	Hytau®WTC-9H	Hytau®WTC-12H	Hytau®WTC-18S	Hytau®WTC-24S
Temperature control range℃	30-180℃
Temperature control accuracy℃	±1℃
Heat transfer medium	Water
Cooling mode	Indirect cooling (plate heat exchanger)
Heating energy KW	9	12	18	24
Pump horsepower KW/HP	0.75/1	0.75/1	1.5/2	2.25/2
Power KW of make-up pump	0.18
L/MIN/KG/cm²	145L/MIN 2.6KG/CM²²	145L/MIN 2.6KG/CM²	200L/MIN 2.6KG/CM²	200L/MIN 2.6KG/CM²
L/MIN/KG/cm²	180L/MIN 2.6KG/CM²	180L/MIN 2.6KG/CM	255L/MIN 2.6KG/CM²	255L/MIN 2.6KG/CM²
Cooling water inlet pressure KG/cm²	2.6
Maximum power consumption KW	9.93	12.93	18.75	25.5
Cooling water piping INCH	1/2"PT
Circulating water piping INCH	2 in 2 out /4 in 4 out to 3/8"PT or 1 in 1 out to 1"PT.
External dimension CM	75X30X75	75X30X75	75X30X75	75X30X75
Net weight KG	75	80	85	90

High-Temperature Water Temperature Control Units (WTCUs)

Note: Due to technological innovation, the following data is for reference, all models are subject to the actual product, pump

and power can be selected according to customer requirements.

★ Water-based mold temperature machine with mold return water direct cooling/indirect cooling,

★ Then the pump pressurized through the electric heating tube high-temperature heating and sent to the mold to meet the heating and constant temperature requirements.

★Imported hot water pump

- assure reliable quality stable running

★Heat transfer medium "water"

- direct cooling/indirect cooling with quality plate heat exchanger

★Taiwan BANGPU microcomputer controller

- Easy operation

- Complete safety protection

- Excellent fault indication system

- Power saving 35%

★ Advance Temperature Controller System

-temperature rises and falls fast

- the temperature control accurate and stable

- temperature tolerance ±1℃ (30-180℃ ).

★The control panel and the body are independent and isolated, which can assure good thermal insulation effect while extending the service life.

★Advanced processing design

- Stainless steel pipes are iIntegrated die-casting molding

- high pressure design

- explosion-proof design

- uniform heating,

- No leakage.

★Can be customized according requirement.
