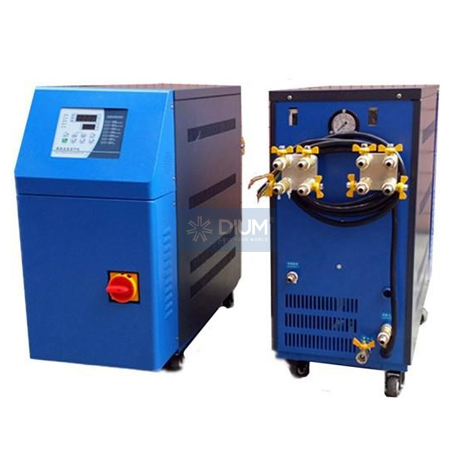

Calculation of several major elements of mold temperature machine：

A. Find the heater power or freezing power

KW＝W×△t×C×S/860×T

W = Mold weight or cooling water KG

t = temperature difference between the desired temperature and the starting temperature.

C = Specific heat Oil (0.5), Steel (0.11), Water (1), Plastic (0.45~0.55)

B. Find the size of the pump

Need to know the pump flow and pressure (head) required by the customer

P(pressure Kg/cm2)=0.1×H(head M)×α (specific gravity of heat transfer medium, water = 1, oil = 0.7-0.9)

L (media required flow L/min) = Q (heat required by the mold Kcal/H) / C (media specific hot water = 1 oil = 0.45) ×t (temperature difference between the circulating media in and out of the mold) ×α× 60

2. Freezer capacity selection

 A, Q (freezing amount Kcal/H) = Q1 + Q2

Q1 (the heat of raw materials into the mold, Kcal/H) = W (the weight of raw materials injected into the mold per hour, KG) ×C× (T1-T2)×S (safety factor 1.5~2)

T1 The temperature of the raw material in the feed tube; T2 The temperature at which the finished product is taken out of the mold

Q2 Heat generated by the hot sprue, Kcal/H

B. Speed algorithm (not applicable with hot runner)

1RT=7~8 OZ 1OZ=28.3g (including safety factor)

1RT=3024Kcal/H=12000BTU/H=3.751KW

1KW=860 Kcal/H　　1 Kcal=3.97BTU

3. Cooling water tower selection = A+B

 A. For injection molding machine

Cooling water tower RT = injection machine horsepower (HP) × 0.75KW×860Kcal× 0.4÷3024

B. For freezers

Cooling water tower RT = freezer tons (HP) × 1.25
