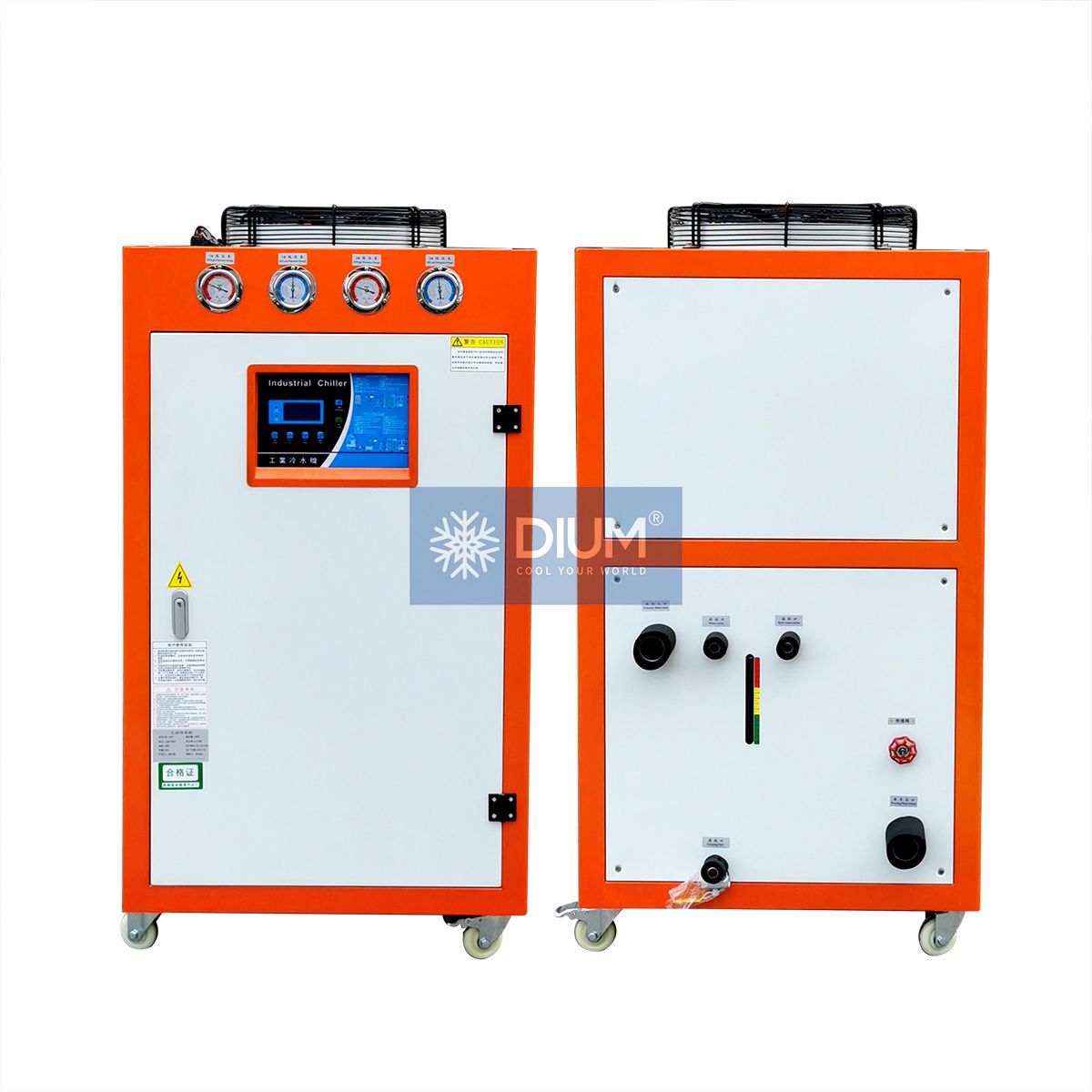

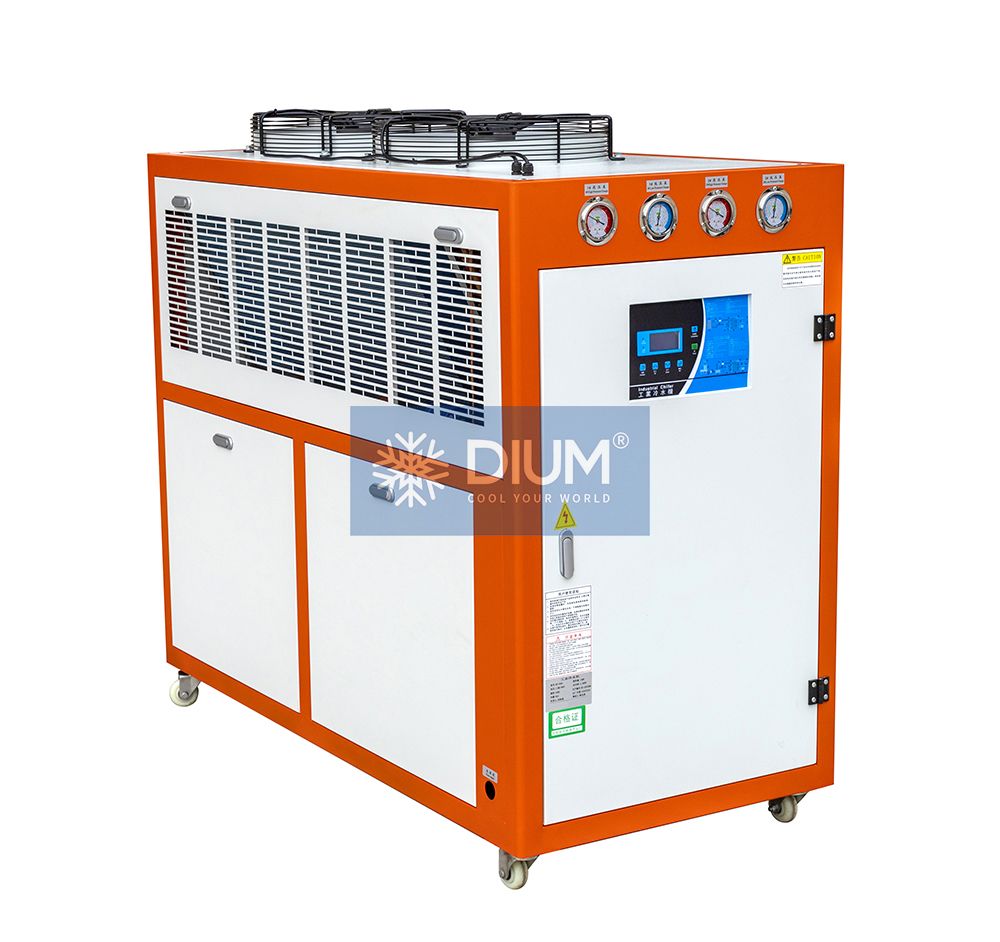

| Water-cooled Chiller Part1/2 |
| Item | Mode | Hytau®WC-03 | Hytau®WC-05 | Hytau®WC-06 | Hytau®WC-08 | Hytau®WC-10 | Hytau®WC-12 | Hytau®WC-15 |
| Nominal Cooling capacity | Kcal/h 50HZ | 7740 | 12900 | 15480 | 20640 | 25800 | 30960 | 38700 |
| KW /50HZ | 9.0 | 15 | 18 | 24 | 30 | 36 | 45 |
Total input power | KW | 2.62 | 4.12 | 4.87 | 6.75 | 8.25 | 10.25 | 12.75 |
| Power supply voltage | 3PH/380V/50HZ |
| Refrigerant | Type | R22(R407C/R404A/R410A/R134A) |
| Control mode | Capillary |
| Compressor | Type | Hermetic scroll type (Piston) |
| Power(KW) | 2.25 | 3.75 | 4.5 | 6 | 7.5 | 9 | 11.25 |
| condenser | Type | (Shell and Tube) |
Cooling Air volume(m³/h) | 2.1 | 3.5 | 3.6 | 5.2 | 6.75 | 7.9 | 10.7 |
| Inlet/outlet pipe calibe | 1” | 1” | 1” | 1.5” | 1.5” | 1.5” | 2” |
| Evaporator | Type | Water tank with coil (Shell and Tube) |
| Chilled fluid flow(m³/h) | 1.5 | 2.5 | 3.2 | 4.1 | 5.2 | 6.0 | 7.5 |
Tank volume(L) | 60 | 60 | 60 | 140 | 140 | 140 | 200 |
| Inlet/outlet pipe caliber | 1” | 1” | 1” | 1.5” | 1.5” | 1.5” | 2” |
| Water pump | Power(KW) | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 |
| Pump head(m) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| water flow(m³/h) | 6 | 6 | 9 | 9 | 9 | 12 | 12 |
| Safety protection | Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection,flow protection, phase sequence/phase loss protection, exhaust overheating protection |
| dimension | L(mm) | 930 | 930 | 930 | 1360 | 1360 | 1610 | 1760 |
| W(mm) | 550 | 550 | 550 | 650 | 650 | 700 | 735 |
| H (mm) | 1000 | 1000 | 1000 | 1270 | 1270 | 1390 | 1360 |
| Weight | Kg | 122 | 139.5 | 143 | 160 | 173 | 285 | 394 |
Note: 1. The refrigerating capacity is based on: the inlet and outlet temperature of chilled water is 12 ℃ / 7 ℃ , and the inlet and outlet temperature of cooling water is 30 ℃ / 35℃ ; 2. Working range: the temperature range of chilled water: 3 ℃ to 35 ℃ ; the temperature difference between the inlet and outlet of chilled water: 3 ℃ to 8 ℃ . It is used in the environment where the condensation temperature is not higher than 35 ℃ . Reserves the right to change the above parameters or dimensions without notice. |
| Water-cooled Chiller part2/2 |
| Item | Mode | Hytau®WC-20 | Hytau®WC-25 | Hytau®WC-30 | Hytau®WC-40 | Hytau®WC-50 | Hytau®WC-60 |
| Nominal Cooling capacity | Kcal/h 50HZ | 51600 | 64500 | 77400 | 103200 | 129000 | 154800 |
| KW /50HZ | 60 | 75 | 90 | 120 | 150 | 180 |
Total input power | KW | 16.5 | 20.95 | 24.7 | 33.75 | 35.9 | 46.06 |
| Power supply voltage | 3PH/380V/50HZ |
| Refrigerant | Type | R22(R407C/R404A/R410A/R134A) |
| Control mode | Expansion valve |
| Compressor | Type | Hermetic scroll type (Piston) |
| Power(KW) | 15 | 18.75 | 22.5 | 30 | 37.5 | 45 |
| condenser | Type | (Shell and Tube) |
Cooling Air volume(m³/h) | 13.9 | 15.8 | 20.5 | 27.8 | 31.6 | 40.9 |
| Inlet/outlet pipe calibe | 2” | 2.5” | 2.5” | 3” | 4” | 4” |
| Evaporator | Type | Water tank with coil (Shell and Tube) |
| Chilled fluid flow(m³/h) | 10 | 12.4 | 15.1 | 20.5 | 25.2 | 30.3 |
Tank volume(L) | 220 | 220 | 315 | 420 | 500 | 550 |
| Inlet/outlet pipe caliber | 2” | 2.5” | 2.5” | 3” | 4” | 4” |
| Water pump | Power(KW) | 1.5 | 2.2 | 2.2 | 4.0 | 4.0 | 4.0 |
| Pump head(m) | 20 | 20 | 20 | 20 | 20 | 20 |
| water flow(m³/h) | 18 | 25 | 25 | 45 | 45 | 45 |
| Safety protection | Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection,flow protection, phase sequence/phase loss protection, exhaust overheating protection |
| dimension | L(mm) | 1860 | 1860 | 2160 | 2360 | 2360 | 2400 |
| W(mm) | 750 | 750 | 750 | 1000 | 1900 | 2000 |
| H (mm) | 1480 | 1480 | 1470 | 1600 | 1800 | 1850 |
| Weight | Kg | 447 | 568 | 610 | 765 | 880 | 950 |
Note: 1. The refrigerating capacity is based on: the inlet and outlet temperature of chilled water is 12 ℃ / 7 ℃ , and the inlet and outlet temperature of cooling water is 30 ℃ / 35℃ ; 2. Working range: the temperature range of chilled water: 3 ℃ to 35 ℃ ; the temperature difference between the inlet and outlet of chilled water: 3 ℃ to 8 ℃ . It is used in the environment where the condensation temperature is not higher than 35 ℃ . Reserves the right to change the above parameters or dimensions without notice. |
Water-cooled chiller is widely used in electroplating, ultrasonic cleaning, plastic industry injection molding and blow molding, metalworking cutting oil, welding equipment, die-casting and machining, chemical and pharmaceutical, industrial processing equipment, food processing and other industrial production, water-cooled chiller can accurately control the temperature required in modern industrial mechanized production, thereby greatly improving production efficiency and product quality.
| 1. Cooling water tower | 2. Circulating pump of water tower | 3. Angle valve |
| 4. Drying fiter | 5. Expansionvalve | 6. Automatic water makeup nozzle |
| 7. Condenser | 8. High pressure switch | 9. Low pressure switch |
| 10. Compressor | 11. Evaporator | 12.Bypass valve (regulating valve) |
| 13. Refrigerated water pump | 14. Cooling water return | 15. Cooling water outlet |
| 16. Drain valve | 17. Cooling water outlet | 18. Cooling water inlet |
◎ Tips：The type and model of the machine are different, so the selection and appearance of accessories are also slightly different
| Multiple protections-alert |
| 1.Temperature abnormalities | 2.The power phase inversion | 3.High- and low-pressure failure | 4.Overload of compressor |
| 5.Overheat of compressor | 6.The pump is overloaded | 7.Low water level alarm | 8.Short circuit |
| 9.Overload of current | 10.Protection against freezing | 11.Exhaust pressure protection | 12.Excellent water flow protection |
